3 Keys FPC Membrane Switch Embossing Custom Membrane Switch Pad

Product Categories
WenYI Electronics Electronics Co.,Ltd
Contact Now

3 Keys FPC Membrane Switch Embossing Custom Membrane Switch Pad

  • 1
  • 2

Brand Name : WenYI Electronics

Model Number : GPI-FMS-006

Certification : RoHs, SGS, ISO9001:2008

Place of Origin : Made In China

MOQ : 10 pcs/ lot

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 500,000 pcs/ Month

Delivery Time : 10-14 working days

Packaging Details : each in ploybag, then in carton box , as per customer request

Circuit type : FPC flex circuit

Overlay : PC / PET 0.20 mm overlay

Keys : Round embossing

Connector : long Zif connector

LED Brand : Ever Light

Surface : Matte Finish Textured

Pitch : 1.0mm

Contact Now

Item Description:



3 keys High Reliable Embossing and SMT Multi leds FPC Membrane Switch with Textured overlay





Circuit type: FPC flexible Circuit

Embossing:  LED window and Key embossing,

LED: everlight Multi-Leds By SMT weld

Connctor Brand: ChangJiang or any brand as per request.

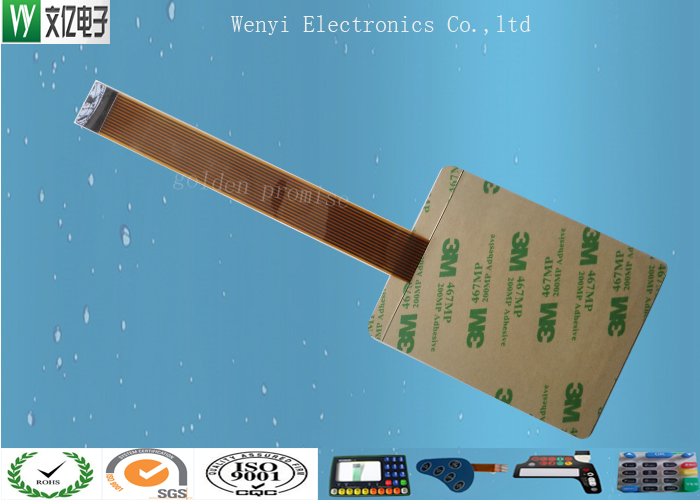

Backadhesive: 3M Series

Dome Type: Metal Dome

Touch Force: 280g

Window Color: Clear Led  window





Application

  1. *  Medical Equipment or Device
  2. *  Smart phone systems
  3. *  Household appliances
  4. *  Security systems
  5. *  Home Appliance
  6. *  Various industry control keypad panel
  7. *  consumer electronics and 3C items.
  8. *  Digital Products.



Technical Specification:



Keyp Content None tactile Tactile
Contact Rating: 30 DVC maximum,100mA maximum, 1 watt maximum 30 DVC maximum,100mA maximum, 1 watt maximum
Operating Contact Resistance Less than 100 OHMS typical Less than 100 OHMS typical
Contact Bounce 5ms typical 10ms typical
Life Cycles >2,000,000 >1,000,000
Switch travel 0.1mm-0.4mm 0.6mm-1.0mm
Switch thickness 0.6mm-1.52mm 0.6mm-1.52mm
Storage Tem -40°C to 65°C -40°C to 65°C
Operating Tem -40°C to 65°C -40°C to 65°C





3 Keys FPC Membrane Switch Embossing Custom Membrane Switch Pad
