0.2mm PET Waterproof Membrane Switch

Product Categories
WenYI Electronics Electronics Co.,Ltd
Contact Now

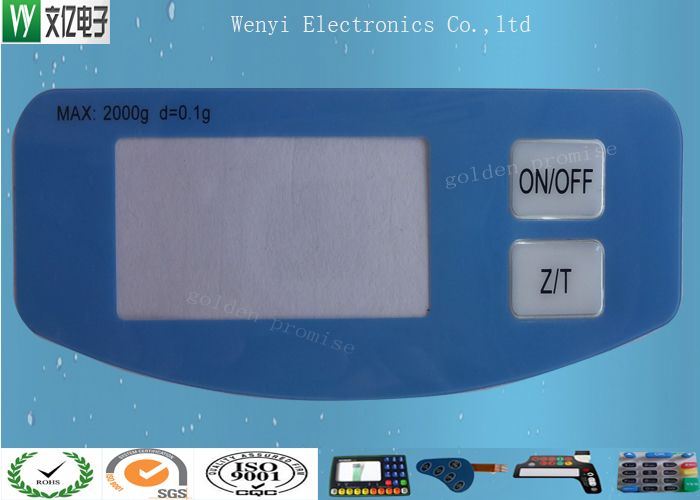

0.2mm PET Waterproof Membrane Switch

  • 1
  • 2

Brand Name : WenYi

Model Number : WY-MS-008

Certification : ISO, RoHs, SGS.

Place of Origin : Made in China

MOQ : 50 pcs

Price : Negotiable

Payment Terms : Western Union, L/C,, T/T, D/P, D/A

Supply Ability : 500,000 pcs / Month

Delivery Time : 10-15 working days

Packaging Details : ploybag, anti-static ploybag per pc, then put in carton

Overlay meterial : 0.2mm PET

Embossing type : embossing

Surface Treatment : Epoxy keys with high glossy

Back adhesive : 3M9495 or similar

Connetor : ZIF connector cable

Circuit : PET 0.125mm Silver Paste

Contact Now

Item Description:



 Four Display Window Easy Pull Strip  Control Keypad Panel Multi-layer Circuit Embossing Membrane

 Switch



Overlay: 0.20 mm  PET overlay



Membrane switch type:  Tactile Dome



Dome type: 10 mm Metal dome



Circuit :  PET 0.125 mm  silver past



Special : EPoxy keys with high glossy



Application: Electronic Device





Sample Lead time :  9-12 working days



Mass production lead time: standard leadtime 9-14 working days



MOQ: 10 PCS



Defected Rate and guarantee: 0.3% as standard





Our Advantage:

  1. Only focus in membrane switch and related items.
  2. Strong R&D capability
  3. Low cost and competitive price
  4. Quick delivery
  5. 100% computer test and inspection before shipment
  6. One stop purchase available for customer
  7. Whole solution design available
  8. All Products provide one year quality warranty

     Application

  1. *Medical Equipment
  2. * Telecommunications apparatus
  3. * Smart phone systems
  4. * Household appliances
  5. * Security systems
  6. * Various industry control keypad panel
  7. * consumer electronics and 3C items.



Technical Specification:



Wenyi Electronics Co.,Ltd Technical Specification Of Membrane Switch
Membrane switch Range carbon paste circuit, silver paste circuit,carbon & silver paste combine circuit,capacity touch sensor circuit and membrane switch, various backlit membrane switch,waterproof, medical membrane switch, digital print membrane siwtch,Zebra cable,SMT LED membrane switch, EL backlit, aluminum plate, PC & Acrylic overlay,touch force membrane circuit,FPC membrane switch, Soft and Rigid combine membrane switch, metal dome , ploy dome,embossing,various membrane switch in the market.
Engineering capability customer design(OEM), own design(ODM),
Factory capacity 500,000pcs / month
wire lead resistance: ＜1Ω/CM Life time: >1 Million times
rated current: 25-100mA,0～30V DC Operation Temperature: -40℃～70℃
Rated Voltage: ＜50V, DC Operation Humidity: at40℃,＜98%RH
Insulation resistance: ＜100MΩ,250V DC Dome springback time: ＜5 msec
Switch travel: Flat Type 0.05-0.3mm Base Material voltage withstand: 1500 V DC
tactile type:0.3-1.5mm Tail flexiblility: any angle within 180 degree
Print type silkscreen Digital print UV print
Dome type metal dome ploydome embossing keys





0.2mm PET Waterproof Membrane Switch
