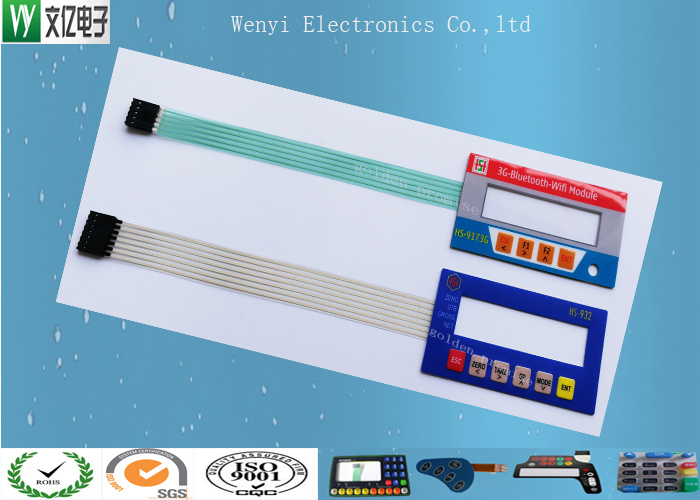

3G WiFi Module Membrane Panel Switch Flat Keys PET Circuit No Tactile Dome Glossy

  • 1
  • 2

Brand Name : Wenyi Electronics

Model Number : GPI-MEDMS-009

Certification : RoHs,SGS,ISO9001:2008

Place of Origin : Made in China

MOQ : 50pcs/ lot

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 500,000 pcs/ month

Delivery Time : 9-12 working days after sample approval

Packaging Details : each in ploybag, then in Carton box

key type : flat , Non Tactile

overlay : PC 0.175 Sand

circuit : PET 0.125 mm

back adhesive : 3M467

Tactile : No tactile

Application : Electronic Scales

Contact Now



3G WiFi Module Membrane Panel Switch PET Circuit No Tactile Dome Glossy





Item decription:



   　PET Circuit No Tactile Dome Glossy PET Overlay 3G WiFi Module Flat Membrane Switch

      Overlay:0.25mm PET Glossy overlay

      Emobossing: Flat keys  , no tactile

      LED : No LED

      Dome : No Dome , Flat

      Back adhesive: 3M 300LSE





Product Characters



  1. 1MM  Pitch PET Circuit
  2. Zif connector with  stiffner
  3. NO tactile , no  embossing.
  4. Various type of PC/ PET overlay
  5. Rasing, and sanding treatment available
  6. Rubber keypad with Epoxy keys available
  7. color keys screen print are available
  8. Application :3G WIFI  Electronics Device





Our Advantage:

  1. Strong R&D capability
  2. Quick delivery
  3. 100% computer test and inspection before shipment
  4. One stop purchase available for customer
  5. All Products provide one year quality warranty



Wenyi Electronics Co.,Ltd Technical Specification Of Membrane Switch
Factory capacity 500,000pcs / month
wire lead resistance: ＜1Ω/CM Life time: >1 Million times
rated current: 25-100mA,0～30V DC Operation Temperature: -40℃～70℃
Rated Voltage: ＜50V, DC Operation Humidity: at40℃,＜98%RH
Switch travel: Flat Type 0.05-0.3mm Base Material voltage withstand: 1500 V DC
tactile type:0.3-1.5mm Tail flexiblility: any angle within 180 degree
Print type silkscreen Digital print UV print
Embossing type various kinds of embossing available,embossing height max 1.2mm
Touch Force 150-350g



3G WiFi Module Membrane Panel Switch Flat Keys PET Circuit No Tactile Dome Glossy
