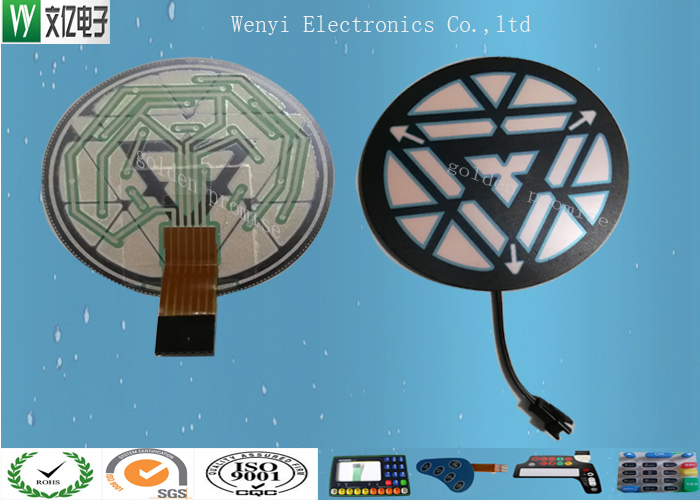

8000 to 10000 Long hours blue and white light EL Panel Backlight FPC Membrane Switch F150 Overlay

WenYI Electronics Electronics Co.,Ltd
Contact Now

8000 to 10000 Long hours blue and white light EL Panel Backlight FPC Membrane Switch F150 Overlay

  • 1
  • 2

Brand Name : WenYI Electronics

Model Number : GPI-FMS-004

Certification : RoHs, SGS, ISO9001:2008

Place of Origin : Made In China

MOQ : 10 pcs/ lot

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 500,000 pcs/ Month

Delivery Time : 10-14 working days

Packaging Details : each in ploybag, then in carton box , as per customer request

Circuit type : EL circuit

Overlay : Frosted overlay

Driver voltage : 3v , 3.3V

Connector : Zif connector

Backlight type : EL panel

lifetime : 8,000-10,000 hours

Contact Now

Item Description:



 8000 to 10000 Long hours blue and white light EL Panel Backlight FPC Membrane Switch F150 Overlay



 Circuit type: EL back light



 Life time: 8000 to 10000 hours



 Light : blue and white



 Driver voltage: 3V , 3.3V



 Connctor Brand: Molex or any brand as per request.





Window Color: Clear Led  window





Our Advantage:

  1. Only focus in membrane switch and related items.
  2. Strong R&D capability
  3. Low cost and competitive price
  4. Quick delivery
  5. 100% computer test and inspection before shipment
  6. One stop purchase available for customer
  7. Whole solution design available
  8. All Products provide one year quality warranty

       Application

  1. *Medical Equipment
  2. * Telecommunications apparatus
  3. * Smart phone systems
  4. * Household appliances
  5. * Security systems
  6. * Various industry control keypad panel
  7. * consumer electronics and 3C items.



       Technical Specification:





Wenyi Electronics Co.,Ltd Technical Specification Of Membrane Switch
Membrane switch Range carbon paste circuit, silver paste circuit,carbon & silver paste combine circuit,capacity touch sensor circuit and membrane switch, various backlit membrane switch,waterproof, medical membrane switch, digital print membrane siwtch,Zebra cable,SMT LED membrane switch, EL backlit, aluminum plate, PC & Acrylic overlay,touch force membrane circuit,FPC membrane switch, Soft and Rigid combine membrane switch, metal dome , ploy dome,embossing,various membrane switch in the market.
Engineering capability customer design(OEM), own design(ODM),
Factory capacity 500,000pcs / month
wire lead resistance: <1Ω/CM   Life time: >1 Million times
rated current: 25-100mA,0~30V DC   Operation Temperature: -40℃~70℃
Rated Voltage: <50V, DC   Operation Humidity: at40℃,<98%RH
Insulation resistance: <100MΩ,250V DC   Dome springback time: <5 msec
Switch travel: Flat Type 0.05-0.3mm   Base Material voltage withstand: 1500 V DC
tactile type:0.3-1.5mm   Tail flexiblility: any angle within 180 degree
Print type silkscreen   Digital print UV print
Dome type metal dome   ploydome embossing keys
Embossing type various kinds of embossing available,embossing height max 1.2mm
Quality control level Defect Rate less than 4 pcs out of 1000pcs
Quality Guarantee Provide 1 year or 0.5~1 milion operation times, as per standard.
Sample lead time 9 to 10 working days as standard
Mass Production lead time 12 to 20 working days, as per order volume. Urgent order available
MOQ 20 pcs / lot, might be different as per specification

      update date: 2018/11/10
